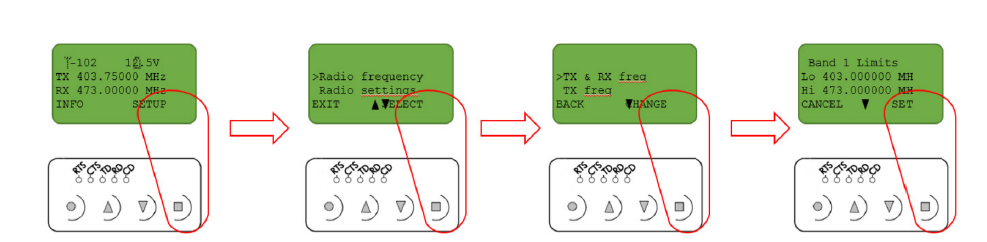

¶ Frequency Settings
- Enter SETUP (square button).
- Navigate to Radio Frequency > TX & RX Frequency

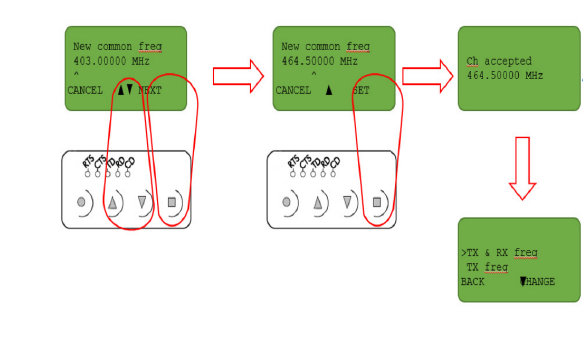

- Adjust digits to match wanted frequency.
- Confirm with SET.

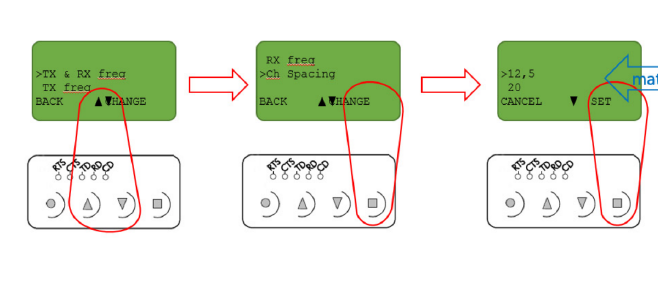

¶ Channel Spacing Configuration
- Set spacing to 12.5 kHz or 25 kHz.

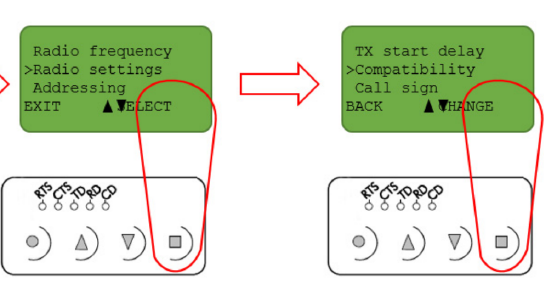

¶ Protocol Configuration
- Go back to main SETUP menu.
- Navigate to Radio Settings > Compatibility.
- Set wanted protocol (e.g. Satelline-3as).

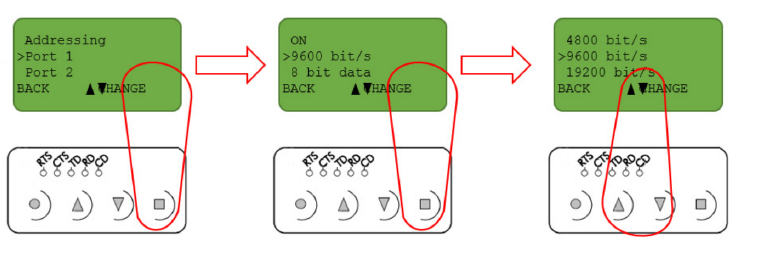

¶ Port Settings
- Go back to main SETUP menu.
- Navigate to Port 1 and set/verify th parameters match:
- ON
- 38400 bit/s
- 8-bit data
- no parity
- 1 stop bit.
¶ ⚠️Save Settings⚠️
- Exit setup.
- ⚠️Confirm Save Settings⚠️.
- Settings will appear on rotating display.
